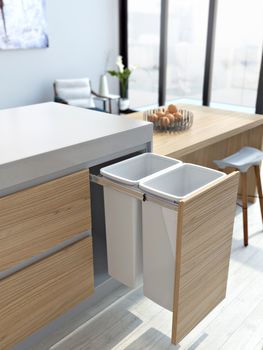

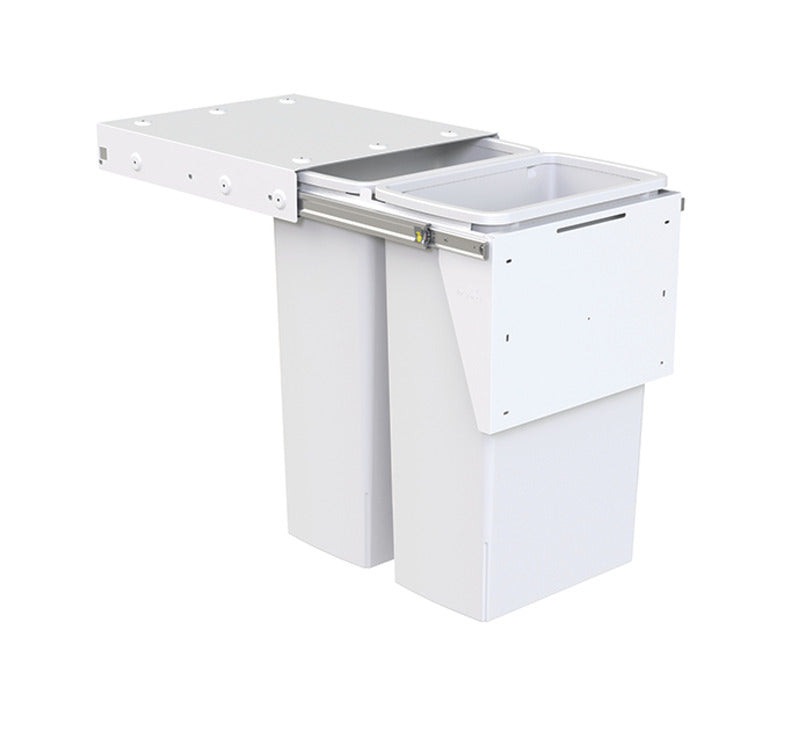

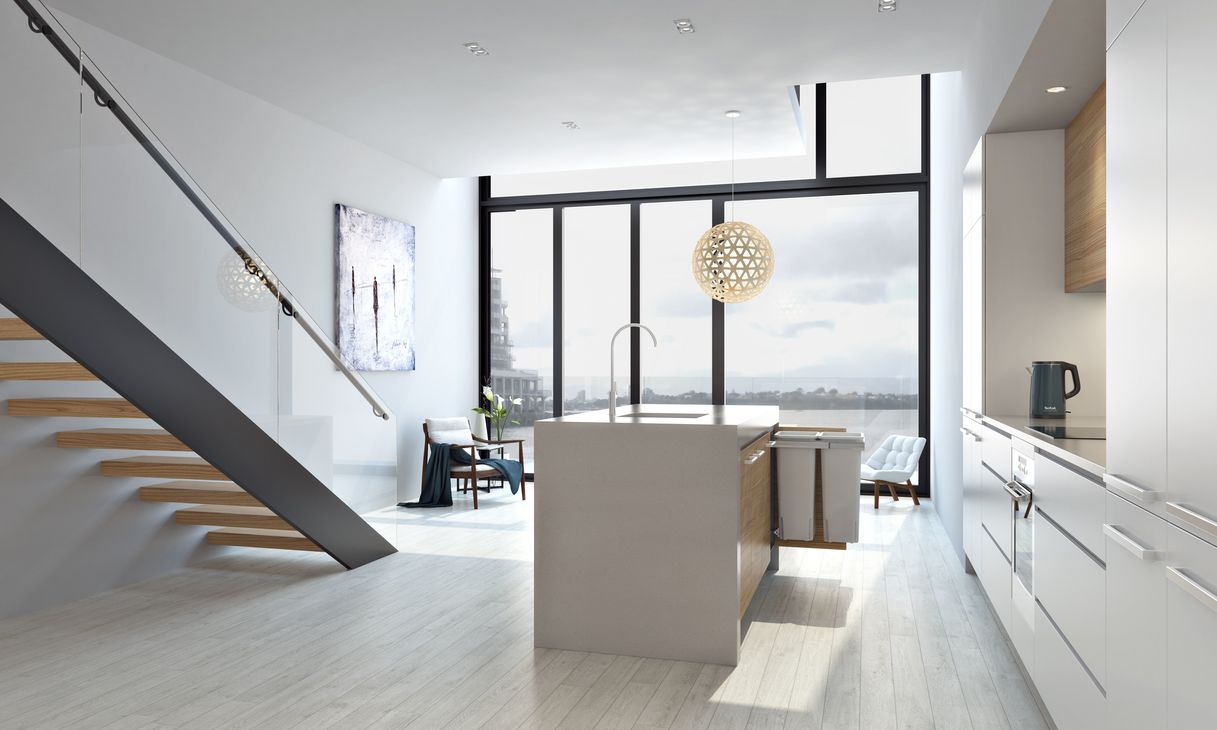

Hideaway Compact 2 x 35ltr Top Mount Door Mount Double Pull Out Kitchen Cupboard Bin (HA70C)

Hideaway Compact 2 x 35ltr Top Mount for Hinged Door (HA70C)

Article details

Width :    368mm

Height :   615mm

Depth :    520mm

Area of application

For  min.  internal width 368 mm,  top mounted door mounted.

The Hideaway Compact Range is not recommended for commercial applications.

Its use in this application will void the warranty.

Material

Frame: Metal gauge 1.0mm zinc treated steel, powder coated arctic white

Pails: Recyclable food grade polypropylene

Finish

Arctic white

Capacity

2 x 35 litres

Load capacity

45

Installation

Bench Overhang Clearance – The KC235 has been designed with over extension drawer runners

which allow for a bench overhang of up to 35mm. If more bench overhang clearance is required,

please mount the bin lower in the cabinet.

installation Min. height – 615mm & min. depth – 518mm & min. width368mm(internal cabinet dimensions)

Features

Hideaway Compact bins are compact in design, making the range ideal for areas with limited space.

The units are top and/or side mounted; this mounting panel acts as a cover for the pails.

Adjustment provided in the door bracket, vertical, horizontal and tilt.

Liner holder to secure bin liners in place.

Over extension ball bearing soft close runners.
